The ProTools P60 From Whitegoods / Inter-Lux is a complete system for linear architectural lighting

The ProTools P60 Linear from Whitegoods / Inter-Lux is a platform for creating tons of different lighting effects. The P60 offers nearly any optical option you might need in an architectural linear form factor from soft regressed lines of light to powerful grazers and wall washers.

In this video, we get in the shed with the P60, and I demonstrate how gear trays are installed in the housing and just a few of the optical options available through this fantastic platform.

More than a Line of Light

ROL -Regressed Opal Lens

Even a line of light is elevated with the ProTools P60. A simple lens regress creates less glare and better sight lines.

ROL - Regressed Opal Lens

A simple soft line of light for general illumination.

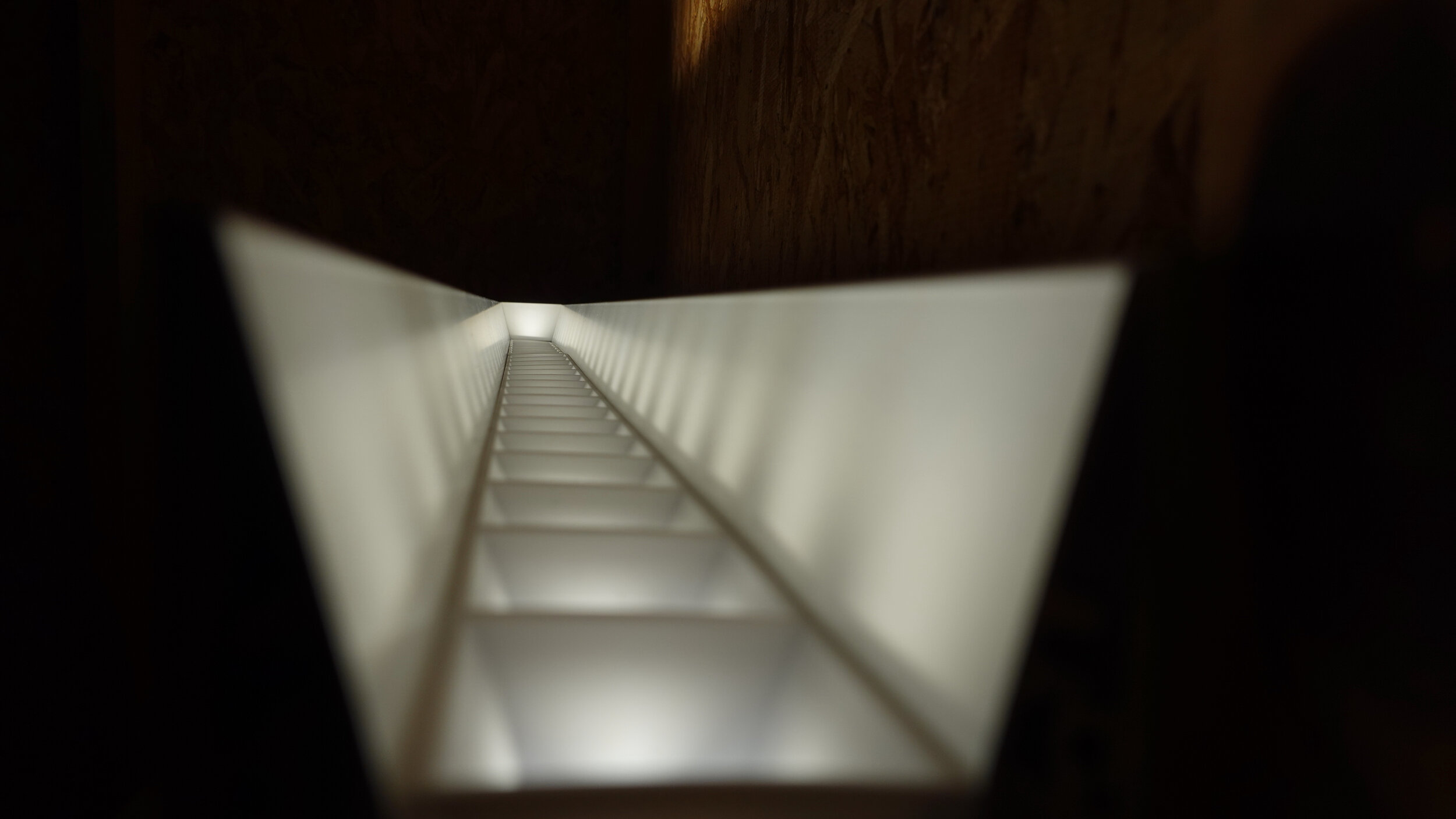

RLW - Recessed Louver in White

Using a recessed white louver gives incredible bunch and crisp lines.

RLW

This optic is punchy, the regress is really necessary to keep it from being glaring.

RLW

You can see how sharp the cut off is on this optic.

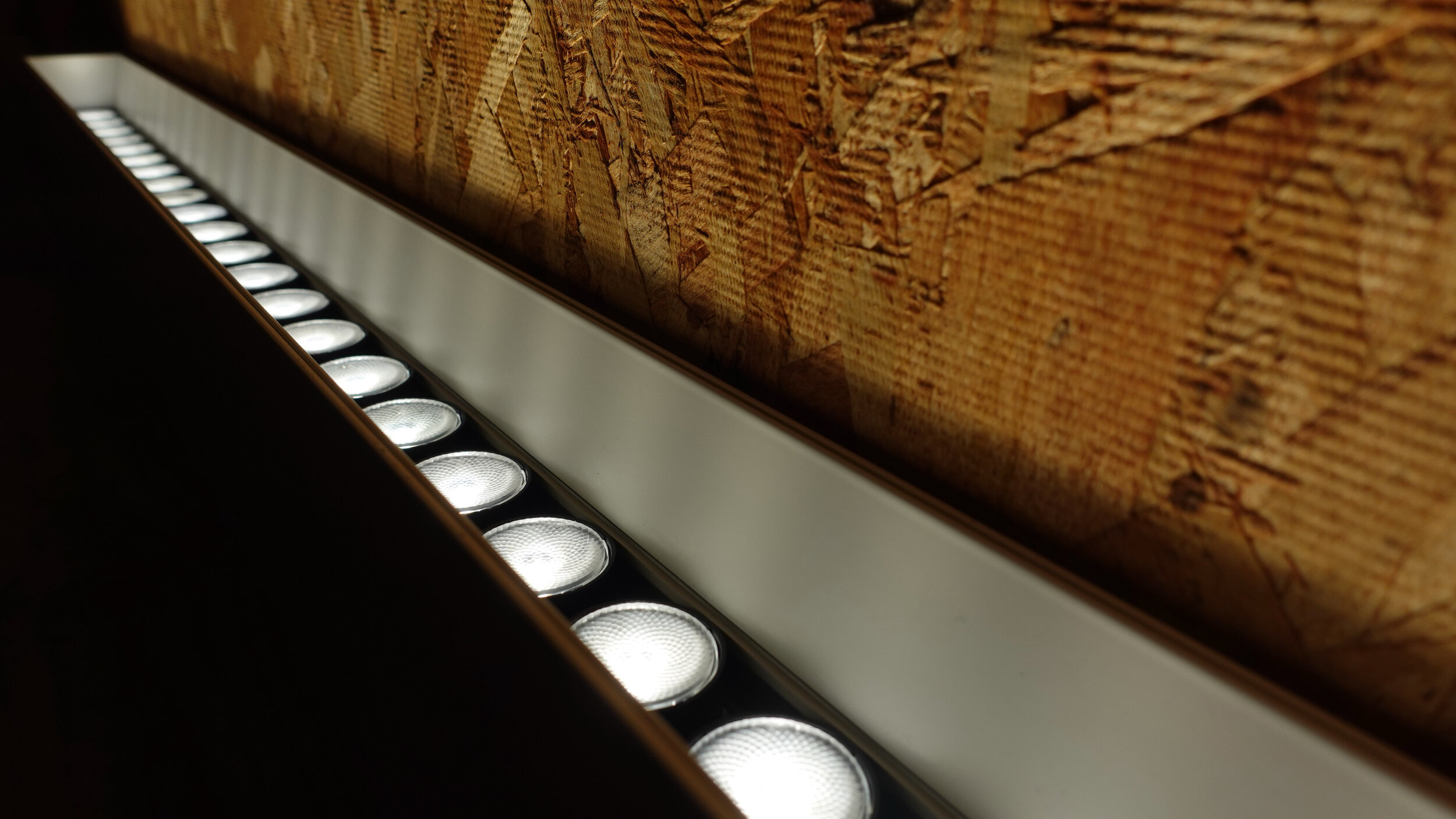

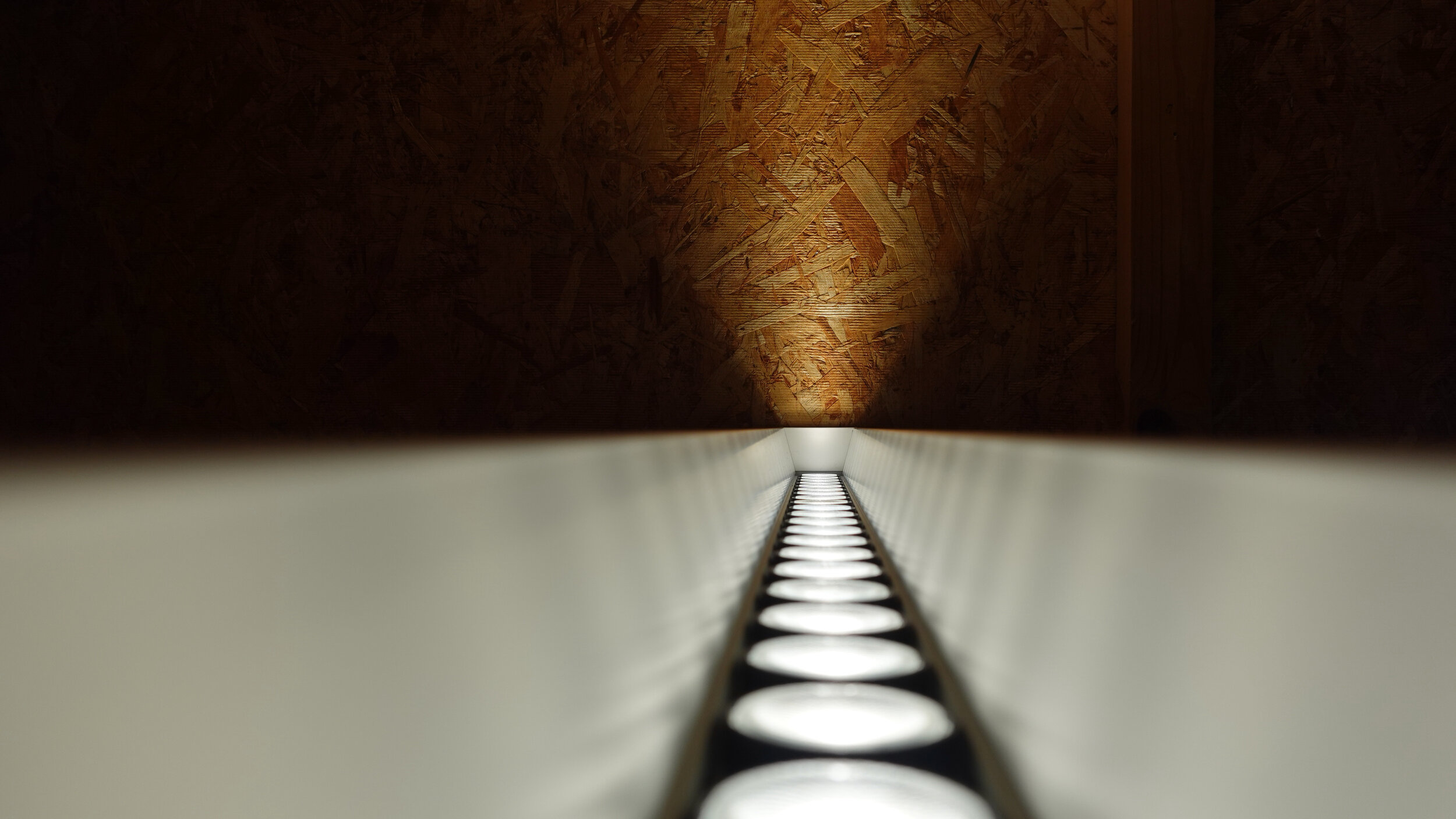

RNO - Regressed Narrow Optic

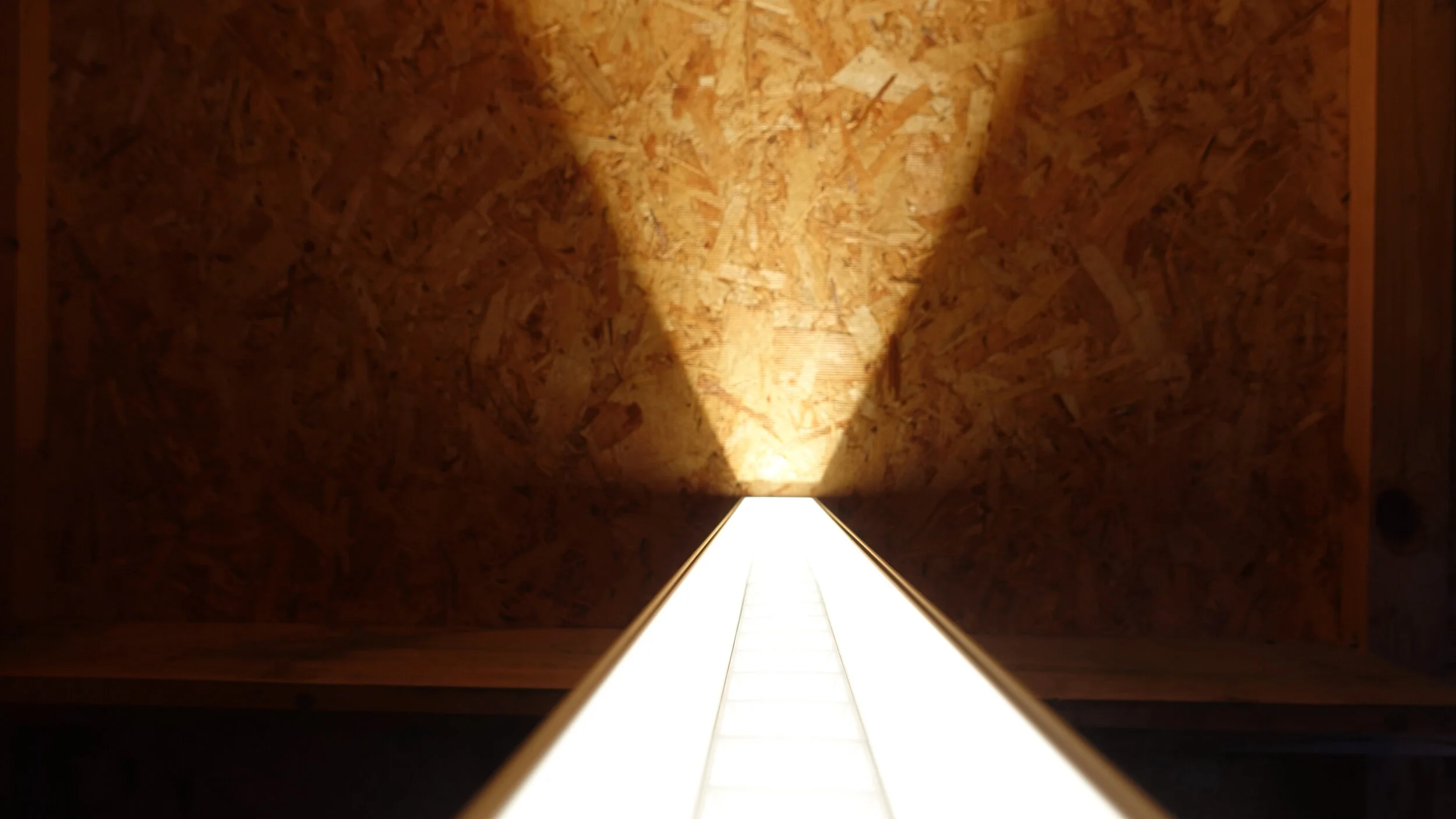

This optic pushes light in a narrow beam but with softer edges.

RNO - Regressed Narrow Optic

The black casement of the lenses quiet the optic and make it an effective grazer.

You can see the softer beam edge versus the louvered lens.

Softer beam edges with cental punch.

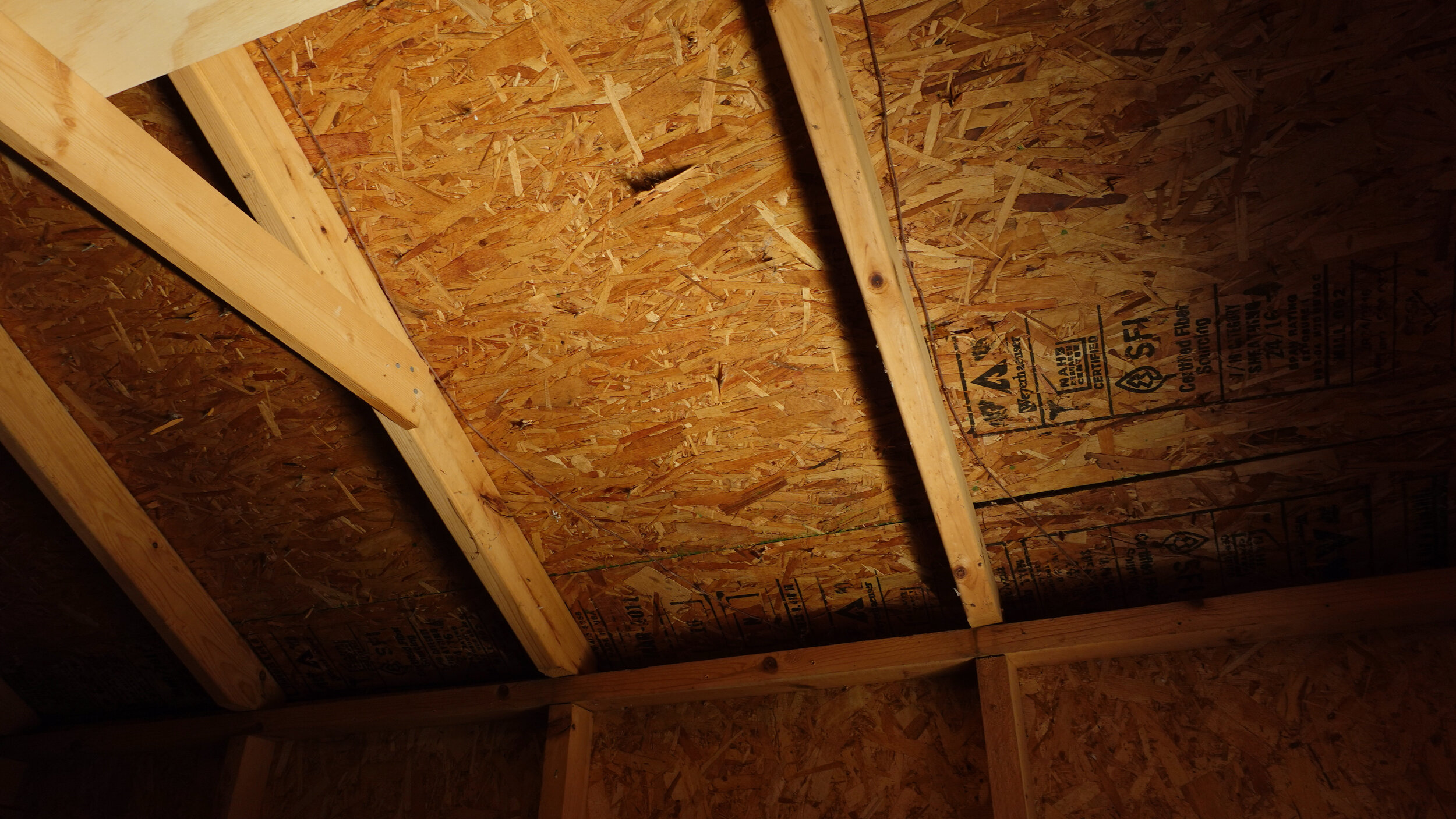

You can see the softer edges making this optic effective for tall ceiling general illumination.

Perimeter Wall Wash With Microprismatic Lens

View fullsize

View fullsize

Soft Grazing Optics

The optics of the soft graze system are designed to work differently at different spaces off the wall.

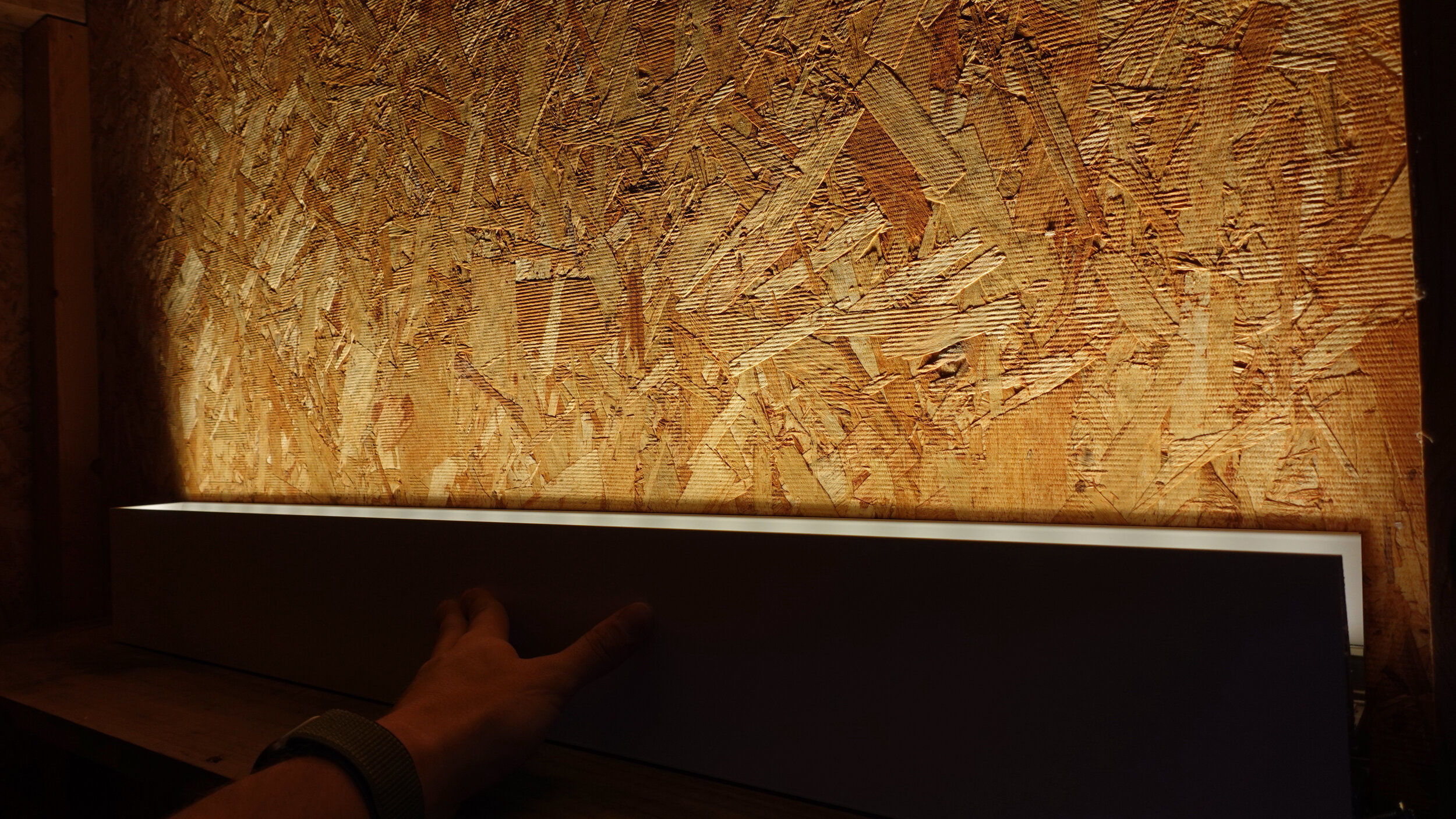

With the fixture tight to the wall, it operates like a traditional grazer.

Backing the optics off the wall slightly will create something closer to midrange wash with soft light at the very top of the wall.

Backing off even more (about 3” from the wall, will create a very soft graze, almost like a recessed cove.

A Family of Linear Solutions

The Protools P60 is part of a linear offering from Whitegoods. Use the interactive PDF below for direct links to all of the current linear options from Whitegoods. Of course, we have samples of all of these so you can play with them in person. The reality is that Whitegoods ProTools really are for professionals. Learning the subtle intricacies of these products gives you an amazing array of options and effects at your disposal and the Inter-Lux engineering team in Baltimore is ready to work with you.
